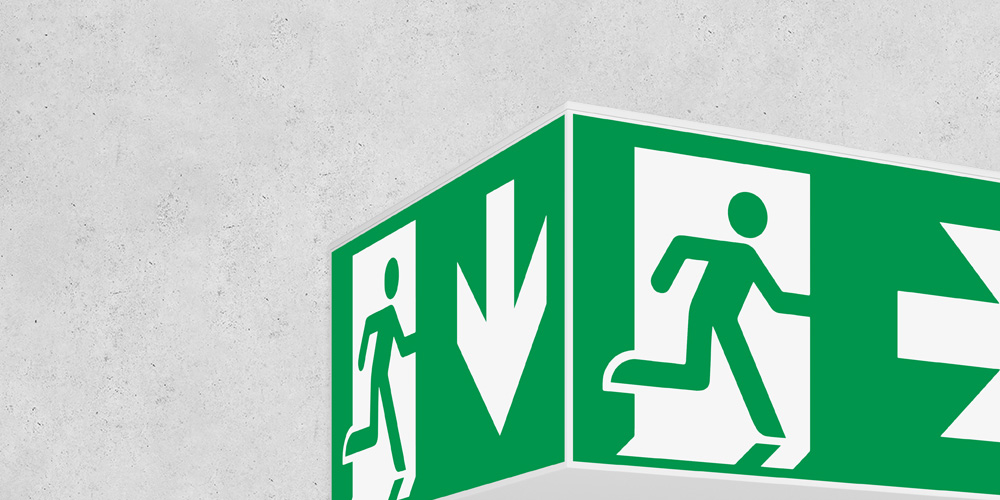

CUBE L-400
Exit luminaire according to EN 60598-1/2-22 and EN 1838.
Modern, cubic luminaire housing made of plastic and pictogram discs printed on three sides (visibility distance 40 m) and a green pane.
The luminaire is equipped with 4 x 3.5 Watt high-power LED technology.
Preferences
- Modern, cubic luminaire housing made of plastic
- All sides are printed (3 x pictograms and 1 x neutral green)
- Ceiling mounting
Technical specifications
| Visibility distance | 40 m |
| Connecting terminals | 2 x 2.5 mm² for double assignment |
| Material | Polycarbonate/Acrylic |
| Colour | white |
| Mounting type | Ceiling mounting |
| Dimensions (W x H x D) | DM 404 x 213 x 404 mm |
| Protection class | IP54 |
| Safety class | II |
| IK Safety class | IK03 |
