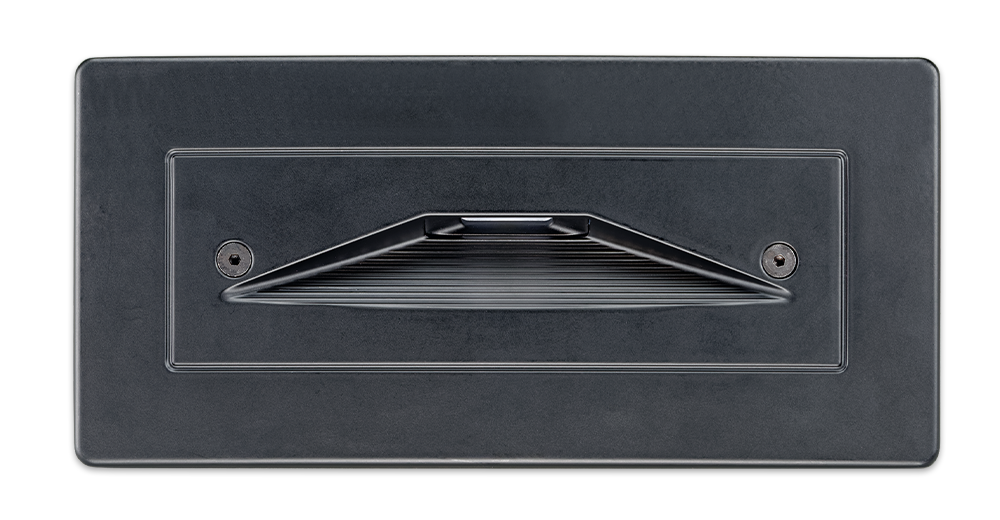

STEP-LIGHT
Safety luminaire in compliance with EN 60598-1/2-22 and EN 1838.

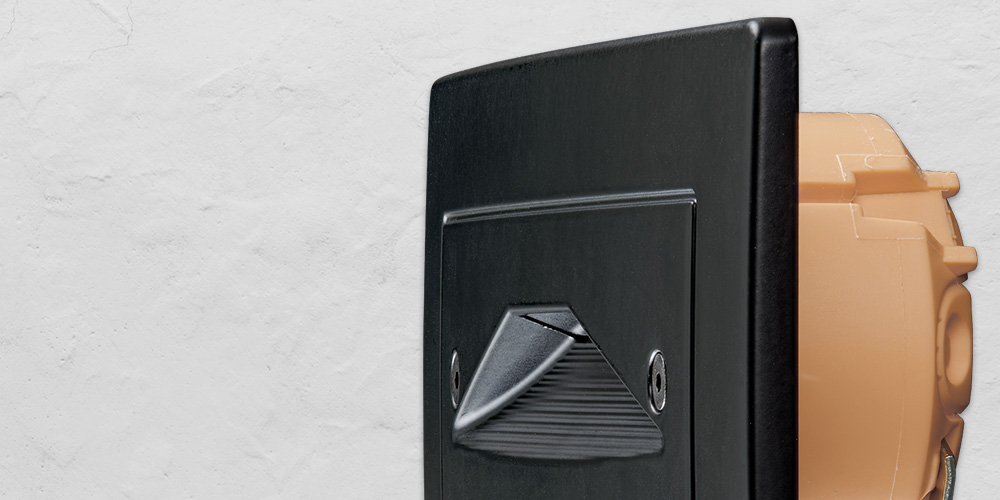

Almost wall flush-mounted luminaire made of aluminum die-cast, powder coated in black, square and slightly curved cover for recessed wall and stair mounting. The luminaire is equipped with a Power-LED for area illumination.
The luminaire has to be mounted in a junction box.
Preferences
- Luminaire for recessed wall and stair mounting
- Aluminum die-cast
- Powder coated in black
- Mounted in usual junction box
- IP54 / IP40
Technical specifications
| Connecting terminals | 3 x 2.5 mm² for double assignment |
| Material | Aluminum die-cast/Polycarbonate |
| Colour | black, powder-coated |
| other colours available on request | |
| Mounting type | Wall/step recessed mounting |
| Dimensions (W x H x D) | WE 200 x 95 x 10 mm |
| Protection class | IP54 |
| Protection class container | IP40 |
| Safety class | I |
| IK Safety class | IK03 |
